Key features and considerations for a single output 12V power supply

2024-04-10

A single output 12V power supply is a type of power supply unit that provides a consistent output voltage of 12 volts DC (Direct Current) to power various electronic devices or systems. These power supplies typically convert an incoming AC (Alternating Current) voltage from a mains power source to the desired output voltage of 12V DC.

Here are some key features and considerations for a single output 12V power supply:

1. Output Voltage: The primary output voltage of the power supply is 12 volts DC, which is suitable for powering a wide range of electronic devices, including LED lights, small appliances, routers, CCTV cameras, and more.

2. Output Current Rating: The power supply will have a specified maximum output current rating, usually measured in amperes (A) or milliamperes (mA). This rating indicates the maximum amount of current that the power supply can deliver at the 12V output.

3. Input Voltage Range: Single output 12V power supplies typically accept a wide range of input voltages, commonly spanning from 100V to 240V AC. This flexibility allows them to be used in various regions with different mains voltage standards.

4. Output Power Rating: The output power rating of the power supply is determined by multiplying the output voltage (12V) by the maximum output current (measured in watts). For example, a power supply with a 12V output and a maximum output current of 5A has a maximum output power rating of 60 watts (12V x 5A = 60W).

5. Efficiency: The efficiency of the power supply refers to how effectively it converts input electrical power into output power. Higher efficiency power supplies waste less energy as heat during the conversion process, resulting in lower operating temperatures and reduced energy consumption.

6. Protection Features: Many single output 12V power supplies include built-in protection features to safeguard both the power supply itself and the connected electronic devices. Common protection features include overvoltage protection, overcurrent protection, short-circuit protection, and thermal protection.

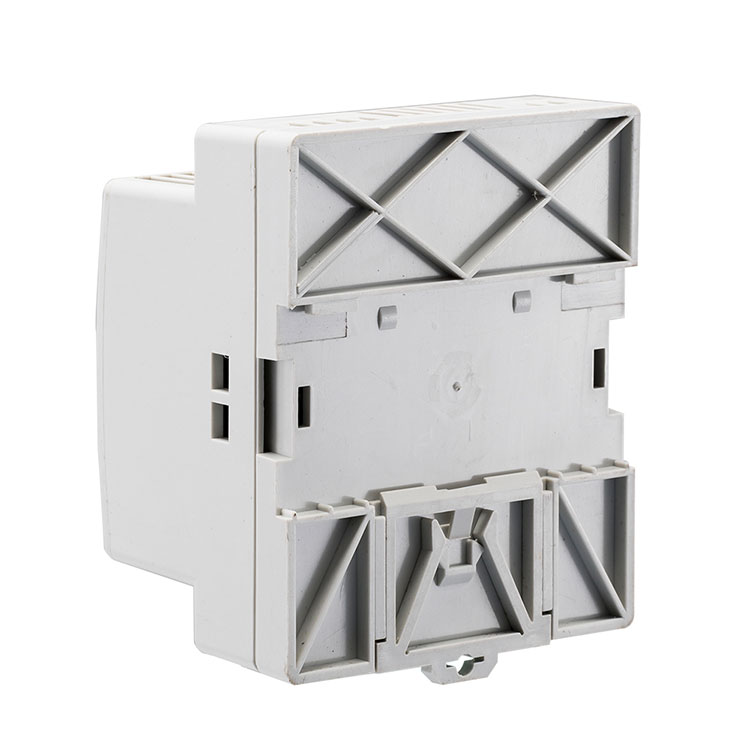

7. Mounting and Form Factor: These power supplies come in various form factors, including desktop-style enclosures, wall-mounted enclosures, and enclosed DIN rail-mounted units. The choice of form factor depends on the application requirements and installation preferences.

8. Certifications and Compliance: It's important to ensure that the power supply complies with relevant safety and performance standards, such as UL (Underwriters Laboratories), CE (Conformité Européenne), FCC (Federal Communications Commission), and RoHS (Restriction of Hazardous Substances) directives.

Single output 12V power supplies are widely used in both industrial and consumer electronics applications where a stable and reliable source of 12V DC power is required. They offer versatility, efficiency, and safety for powering a variety of devices across different industries.
