Here's an overview of the wire cutting process

2024-01-29

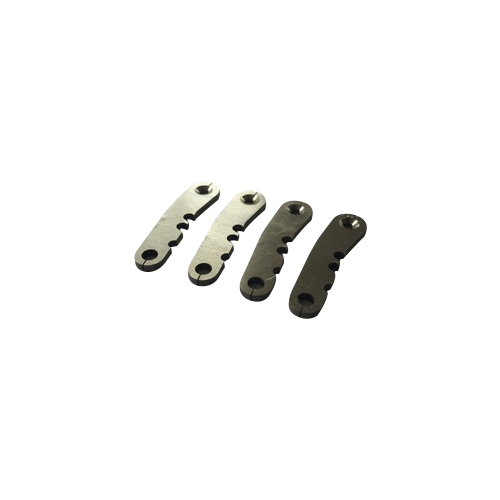

Automatic parts wire cutting, often referred to as wire EDM (Electrical Discharge Machining) or wire cutting EDM, is a precision machining process used to cut intricate shapes and contours in metal parts with a high degree of accuracy. This process is particularly useful for producing parts with tight tolerances, complex geometries, and delicate features. Here's an overview of the wire cutting process:

1. Workpiece Setup:

  - Secure the workpiece on the machine table or fixture. The workpiece is typically made of electrically conductive materials such as metals.

2. Wire Installation:

  - Install a thin, electrically conductive wire, usually made of brass or coated with brass, between two spools on the wire EDM machine. The wire serves as the cutting tool.

3. Dielectric Fluid:

  - Submerge the workpiece and the wire in a dielectric fluid (usually deionized water). The dielectric fluid serves multiple purposes, including flushing away debris, cooling the workpiece, and providing electrical insulation.

4. CNC Programming:

  - Develop a CNC program that precisely controls the movement of the wire during the cutting process. The program specifies the toolpath and cutting parameters based on the desired part geometry.

5. Spark Generation:

  - Bring the wire close to the workpiece, and using electrical discharges (sparks) between the wire and the workpiece, erode material from the workpiece. The spark erosion process creates the desired shape in the workpiece.

6. Automated Cutting:

  - The wire EDM machine automatically follows the programmed toolpath, cutting through the workpiece layer by layer. The continuous feed of fresh wire and the flushing action of the dielectric fluid help maintain a consistent cutting process.

7. Taper Cutting (Optional):

  - Some wire EDM machines can perform taper cutting, where the wire is tilted at an angle to create 3D shapes with draft angles. This capability is useful for producing more complex geometries.

8. Quality Control:

  - Periodically inspect the machined features using precision measurement tools to ensure that the part meets the specified tolerances. Adjustments to the machining parameters may be made as needed.

9. Surface Finish:

  - Wire EDM typically produces a fine surface finish. However, additional finishing processes, such as polishing or deburring, may be required to achieve the desired surface quality.

10. Part Removal and Cleaning:

   - After the wire cutting process is complete, remove the finished part from the machine. Clean the part to remove any residual dielectric fluid or debris.

11. Documentation:

   - Maintain detailed documentation of the machining process, including the CNC program, cutting parameters, and quality control results. This documentation is valuable for traceability and process optimization.

Wire EDM is commonly used in the production of precision components for industries such as aerospace, medical devices, and tool and die manufacturing. It excels in machining materials that are difficult to machine with traditional methods and allows for the production of intricate and delicate parts with high accuracy.
